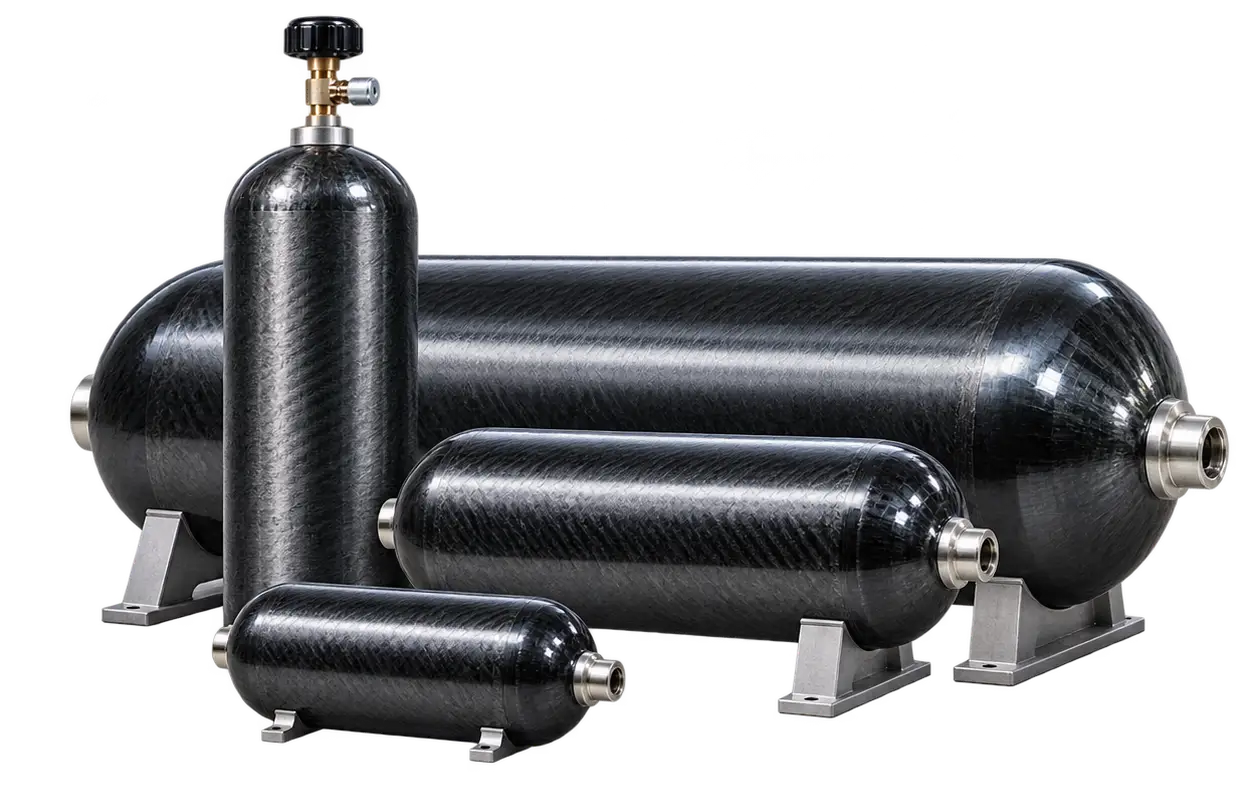

Titan Series
Large Type III Pressure Vessels
High-capacity composite pressure vessels engineered for gas transport, ground storage and industrial systems where weight, durability and packaging efficiency matter.
Titan Series vessels combine aluminum liners with carbon-composite structural reinforcement to provide large-volume, high-pressure storage for hydrogen, breathing air, nitrogen, helium, argon and other compatible gases.
Large-volume composite gas storage
Built for stationary and mobile high-pressure systems.
Steelhead's large composite pressure vessels are designed to reduce system weight while supporting demanding gas-transport and storage applications.
Titan Series platforms can be integrated as single vessels or as part of bundled systems, MEGCs, tank farms and buffer-storage installations.
Type III
Aluminum-lined composite pressure-vessel construction.
Up to 5,000 PSI
Current documented Titan-family data includes a 345 bar / 5,000 PSI platform.
90L–270L
Five documented standard volumes in the current 17-inch OD family.

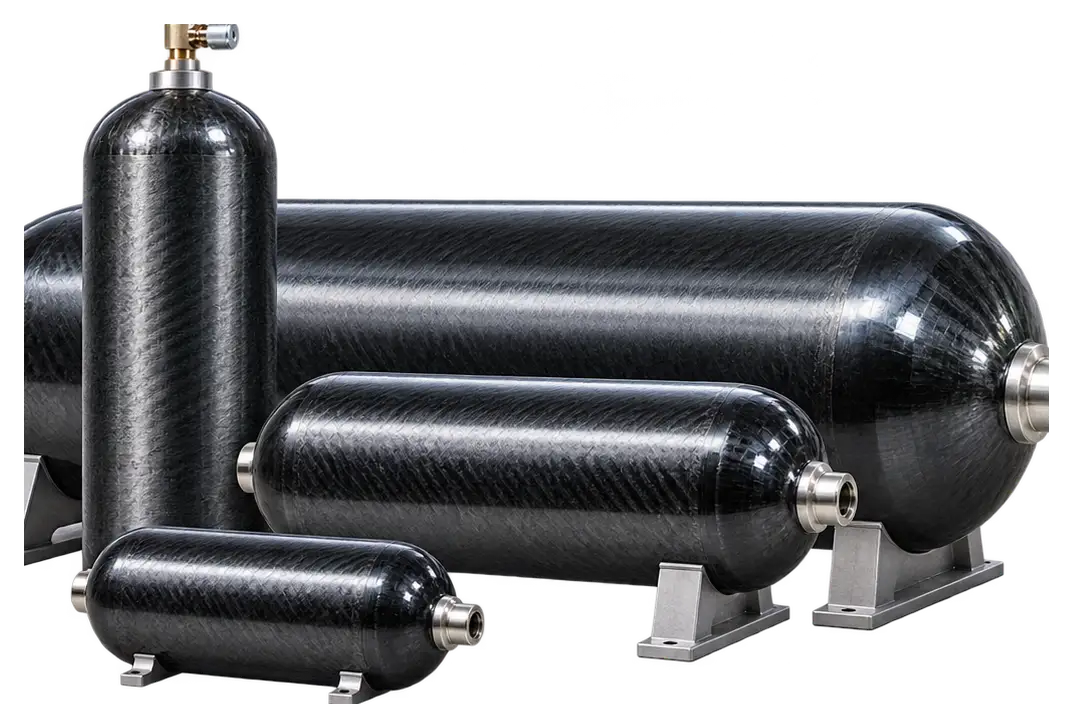

Titan Series products
Large Type III platforms for transport and storage.
Titan includes large-port and standard gas-transport configurations, with additional high-pressure products continuing to expand the family.
Titan Series
GT Large-Port Vessel
Large-Port Gas Transport Platform
Large Type III pressure-vessel platform intended for high-flow gas transport and storage applications requiring flexible valve and port integration.
- Large-port configuration
- Gas transport and storage applications
- Strap-mount integration
- Flexible valve and end-plug options
Titan Series
5000 PSI Gas Transport Family
17-Inch OD Type III COPVs
A certified large-volume Type III family available in five standard capacities from 90 to 270 liters.
Titan Series
6000 PSI Platform
Next-Generation Large Type III Vessel
A higher-pressure Titan platform intended to extend Steelhead's large-vessel portfolio for demanding industrial and gas-storage systems.
Final public product name and detailed specifications will be added when the production configuration is finalized for publication.

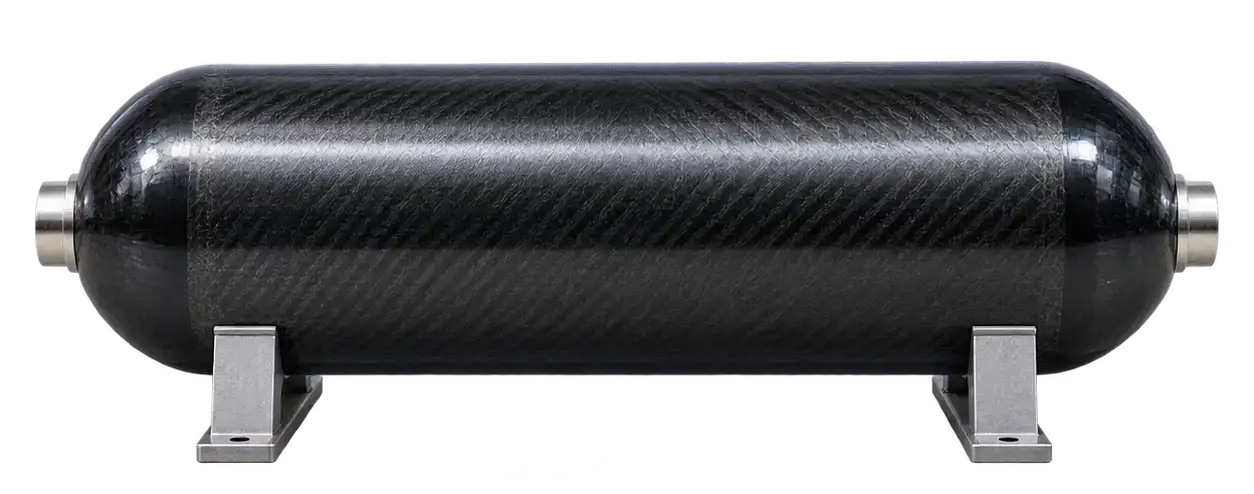

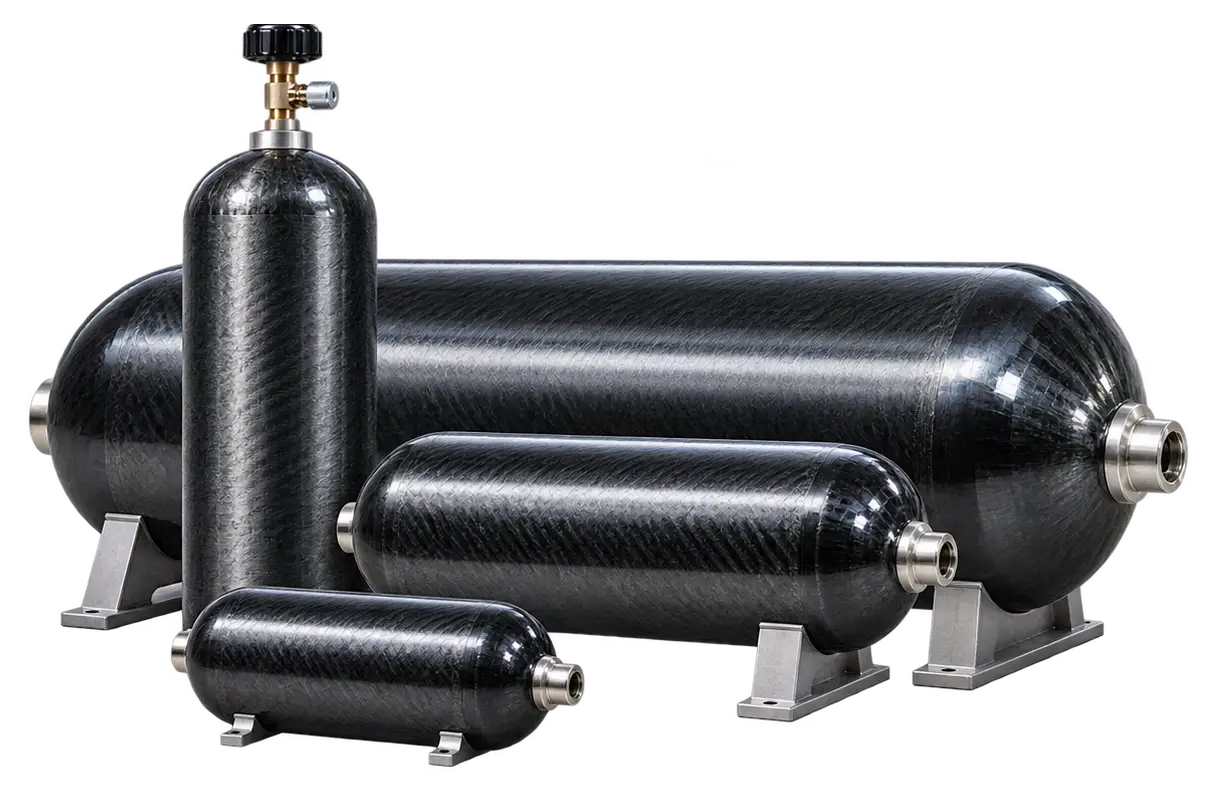

Titan Series · 5000 PSI Family
Five standard capacities on a 17-inch OD Type III platform.
Steelhead's 5000 PSI Type III COPV family provides large-volume, high-pressure gas storage in five standard capacities from 90 to 270 liters, all using a common 17-inch outside diameter.
The family is designed for mobile gas transport, bundled systems and MEGCs, as well as stationary tank farms and buffer-storage applications.
5000 PSI vessel configurations
All five standard configurations share the same nominal 432 mm (17 in) outside diameter.
| Nominal Volume | Length Without Valves | Mass / Weight | Outside Diameter | Maximum Service Pressure |
|---|---|---|---|---|
| 90 L (23.8 gal) | 1029 mm (41 in) | 68 kg (150 lb) | 432 mm (17 in) | 345 bar (5,000 PSI) |
| 133 L (35.1 gal) | 1435 mm (57 in) | 95 kg (210 lb) | 432 mm (17 in) | 345 bar (5,000 PSI) |
| 205 L (54.2 gal) | 2146 mm (85 in) | 140 kg (310 lb) | 432 mm (17 in) | 345 bar (5,000 PSI) |
| 260 L (68.9 gal) | 2550 mm (100 in) | 168 kg (370 lb) | 432 mm (17 in) | 345 bar (5,000 PSI) |
| 270 L (71.3 gal) | 2642 mm (104 in) | 170 kg (375 lb) | 432 mm (17 in) | 345 bar (5,000 PSI) |
Type III construction
Aluminum-lined composite construction for demanding gas service.
6061-T6 Aluminum Liner
Seamless aluminum liner provides the gas-retaining barrier.
Carbon Composite Structure
Carbon composite provides the primary structural reinforcement.
Protective Overwrap
Fiberglass composite with a clear epoxy coating provides the external protective layer.
Operating envelope
High-pressure performance with certified commercial capability.
5,000 PSI Service Pressure
Maximum service pressure of 345 bar / 5,000 PSI.
7,500 PSI Hydrostatic Test
Hydrostatic test pressure of 517 bar / 7,500 PSI.
-30°C to 65°C
Standard service-temperature range from -22°F to 150°F, with short-duration excursions up to 85°C / 185°F.
Ports & mounting
Flexible interfaces for transport and storage systems.
Standard port configurations support valves, engineering plugs, TPRDs and plugged-port arrangements, with custom threads available for application-specific system integration.
Port 1
Standard options include a 1-1/8-12 UN-2B valve interface and ORB-12 (1-1/16-12 UN-2B).
Port 2
Engineering-plug TPRD, ORB-12 and plugged-port configurations are documented for the family.

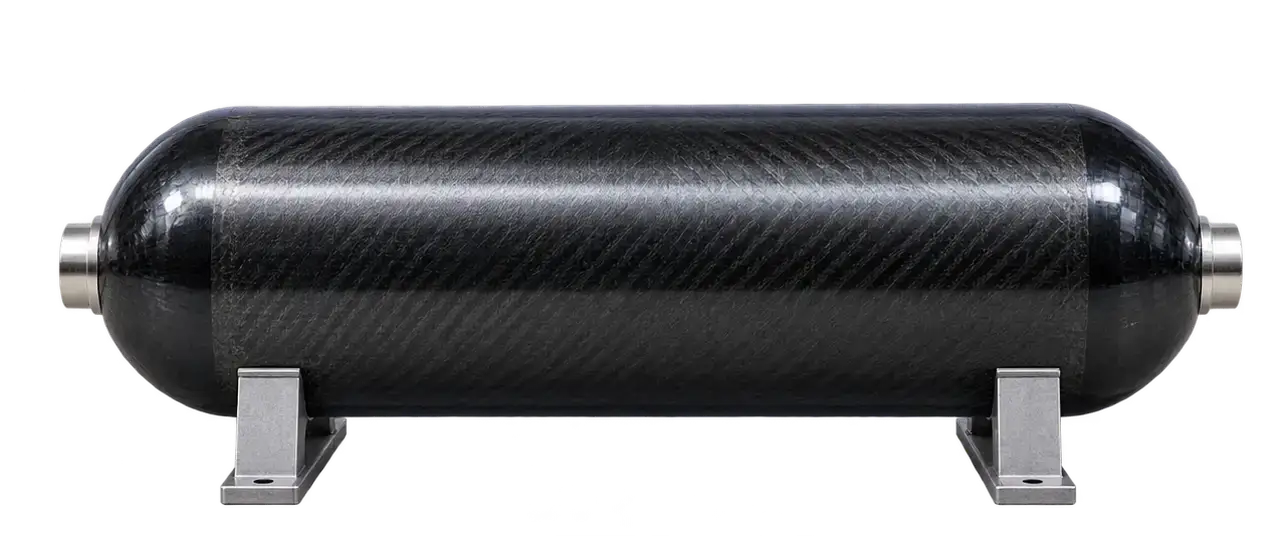

Mounting
Designed for strap or saddle mounting. Horizontal orientation is recommended, with vertical orientation also acceptable.
Applications
Large-volume storage for mobile and stationary gas systems.
The 5000 PSI family is suitable for transport, ground storage and buffer applications where high capacity and reduced system weight are important.
Mobile Gas Transport
Single-vessel or bundled transport systems, including MEGC configurations.
Ground Storage
Tank farms, stationary storage and buffer-MEGC systems.
Hydrogen
High-pressure hydrogen storage for compatible system designs and applications.
Industrial & Specialty Gases
Breathing air, nitrogen, helium, argon, CNG and other compatible gases.
Engineering support
Configure the 5000 PSI platform around your system.
Steelhead can help evaluate vessel volume, ports, valves, TPRDs, mounting strategy and bundle architecture for transport or stationary systems.
Volume Selection
Compare the five standard vessel lengths against storage capacity and available system envelope.
Valve & TPRD Integration
Review standard interfaces and application-specific port requirements.
Bundle Architecture
Evaluate single-vessel, bundle, MEGC, tank-farm or buffer-system integration.
Talk to a pressure vessel expert
Could Titan fit your large-volume gas-storage system?
Share your gas, pressure, volume, port, mounting and packaging requirements with Steelhead.
